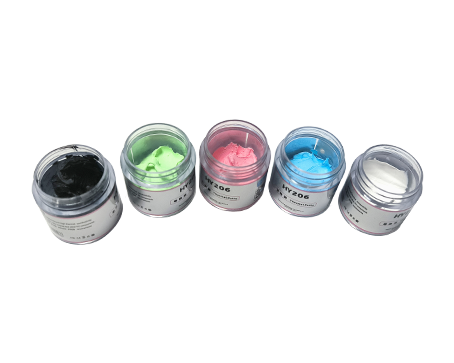

HY200 series Different Colors Thermal Putty
Thermal putty is one of the new thermal interface material, ...
- Model：HY200
- Brand：HALNZIYE
- Colour：Black & Green & Pink & Blue & White
- Thermal conductivity：4.0 ~ 8.0 W/m-k
- Package：10g in the bottle
- Application：Smart Phone, GPU RAM, Mining Machine etc.
- Thermal Impedance：0.021 ~ 0.028 °C-in2/W
- Concentration：180~210 ± 10 1/10mm
- High temperature resistance：
- Operation temperature：-20 ~ 150 °C
Order Hotline：+86-0755-28772795
product details
Thermal putty is one of the new thermal interface material, it is good to be different sizes and thickness, perfect replcing thermal pads.
Products data :
| Model | HY200 Series | Unit |
| Color | Black&Green&Pink&Blue&White | No |
| Thermal Conductivity | ＞4.0 ~ 8.0 | W/m-k |
Thermal Impedance | ＜0.021 ~ 0.028 | C-in²/W |
| Specific Gravity | ＞2.75~3.2 | g/cm³ |
| Dielectric Strength | 5.2 | KV/mm |
| Moment Beared Temperature | -20~150 | ℃ |
* There are different colors, packings, thermal conductivities thermal
putty products available.
