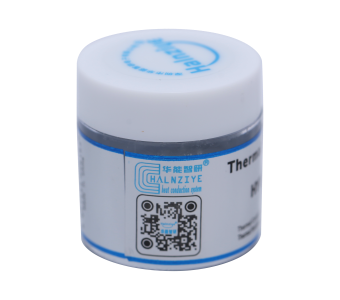

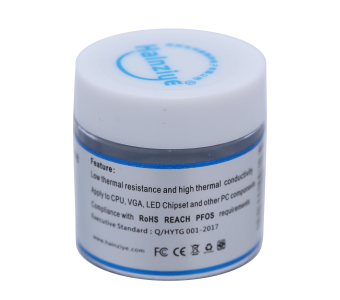

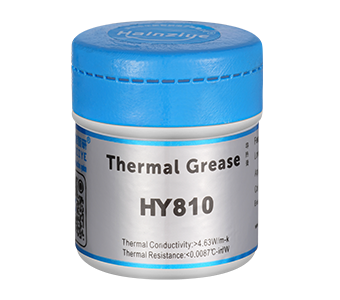

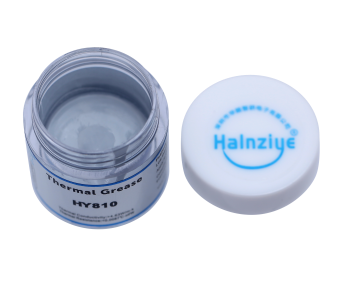

HY810 10g Grey Thermal Grease in the Can
HY810 10g Grey Thermal Grease in the Can
HY810 10g Grey Thermal Grease in the Can
HY810 10g Grey Thermal Grease in the Can
>

HY810 10g Grey Thermal Grease in the Can

HY810 Nano-Based Thermal Grease, with good cooling performan...

  • Model:HY810-CN10
  • Brand:HALNZIYE
  • Colour:Grey
  • Thermal conductivity:4.63 w/m-k
  • Package:10g in the small can
  • Application:CPU GPU CPB LED Lighting
  • Thermal Impedance:0.0087 °C-in2/W
  • Concentration:330 ± 10 1/10mm
  • High temperature resistance:-30 ~ 220 °C
  • Operation temperature:-20 ~ 180 °C
Order Hotline:+86-0755-28772795

product details

HY810 Grey Themral Grease



Product Description



HY810 Grey Thermal Grease, good performance for middle CPU and higher power COB LED Lighting, Thermal grease passed SGS, ROHS, SVHC Certificates, differen packing for your different demands.



Thermal conductivity: 4.63 w/m-k

Good Electric Insulating, Breakdown 0.5kv voltage

Low Thermal Impedance, keep grease condition with long time

With a wide range working temperature, keep stable performance at temperature

-20 ℃ ~180 ℃

High performance, saving your cost.



Specifications:



ModelHY810Unit
ColorGreyNo
Thermal Conductivity4.63W/m-k
Thermal Impedance<0.0087℃-in²/W
Specific Gravity>2.93g/cm³
Thixotropic Index330±101/10mm
Moment Bore Temperature-30~220

Operation

Temperature

-20~180



Ingredients



Silicone Compounds15%
Carbon Compounds35%
Metal Oxide Compound50%



Product Applications



High thermal Demand module

Cooling device to the end plate or between the Frame

Automotive Engine Control

Middle CPU, GPU

Power conversion apparatus

Notebook and desktop computers

Network communications equipment

Household appliances, electronic components, electrical etc.


Application Method



1. Clean the CPU and heat sink surface, wipe the surface lightly with a cotton ball or cotton seab dampened with our thermal cleanser.

2. Place a tiny drop of thermal grease to the center of the cooler base, smear it evenly with scraper, best thickness is 0.13~0.15mm.

3. Attach the heat sink to the processor and avoid removing the heat sink after installing it.
4. Finished


Product Storage



Room temperature
