HY810 Series Grey Thermal Grease
HY810 Series Grey Thermal Grease
HY810 Series Grey Thermal Grease
HY810 Series Grey Thermal Grease
HY810 Series Grey Thermal Grease

HY810 Series Grey Thermal Grease

HY810 Series Nano-Based Thermal Grease, with good cooling pe...

  • Model:HY810 Series
  • Brand:HALNZIYE
  • Colour:Grey
  • Thermal conductivity:3.0 - 4.63 W/m-k

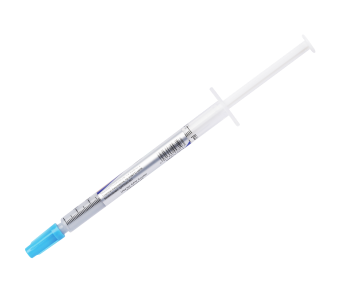

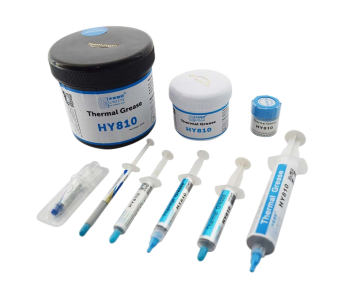

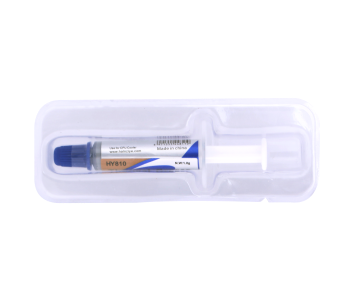

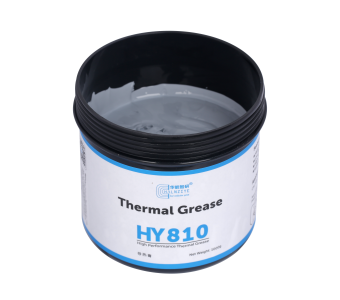

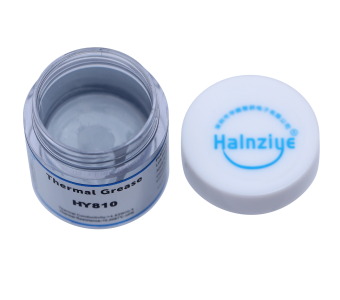

  • Package:Mini Bag, Syringe, Blister Card, Tube, Can
  • Application:CPU, GPU, COB LED Lighting
Order Hotline:+86-0755-28772795

product details

HY810 Series Grey Themral Grease


Product Description


HY810 Series Grey Thermal Grease, good performance for middle CPU and higher power COB LED Lighting, Thermal grease passed SGS, ROHS, SVHC Certificates, differen packing for your different demands.


Thermal conductivity: 3.0 ~ 4.63 w/m-k

Good Electric Insulating, Breakdown 0.5kv voltage

Low Thermal Impedance, keep grease condition with long time

With a wide range working temperature, keep stable performance at temperature

-20 ℃ ~180 ℃

High performance, saving your cost.




ItemHY810 SeriesUnit
Thermal Conductivity3.0 ~ 4.63W/m-k
Thermal Impedance<0.037 ~ 0.0087℃-in²/W
Specific Gravity>2.5 ~ 2.93g/cm³
Thixotropic Index330 ~ 350 ±101/10mm
Moment Bore Temperature-30~220







Silicone Compounds15 ~ 30%
Carbon Compounds30 ~ 35%
Metal Oxide Compound40 ~ 55%


Product Applications


High thermal Demand module

Cooling device to the end plate or between the Frame

Automotive Engine Control

Middle CPU, GPU

Power conversion apparatus

Notebook and desktop computers

Network communications equipment

Household appliances, electronic components, electrical etc.

Application Method


1. Clean the CPU and heat sink surface, wipe the surface lightly with a cotton ball or cotton seab dampened with our thermal cleanser.

2. Place a tiny drop of thermal grease to the center of the cooler base, smear it evenly with scraper, best thickness is 0.13~0.15mm.

3. Attach the heat sink to the processor and avoid removing the heat sink after installing it.
4. Finished

Product Storage


Room temperature
