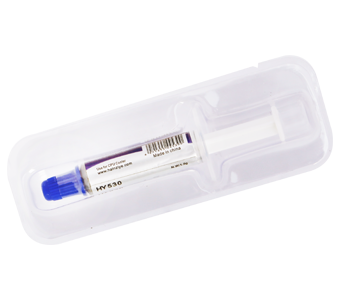

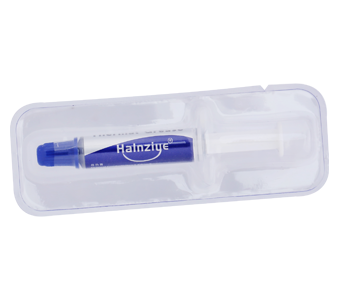

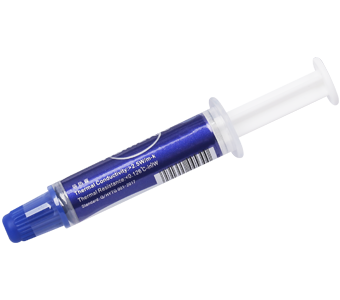

HY530 Grey Themral Grease
HY530 Grey Thermal Grease, Normal Cheap Model, Thermal grease passed SGS , ROHS, SVHC Certificates, differen packing for your different demands.
Thermal conductivity: 2.5w/m-k
Good Electric Insulating, Breakdown 5kv voltage
Low Thermal Impedance, keep grease condition with long time
With a wide range working temperature, keep stable performance at temperature
-20 ℃ ~230 ℃
High performance, saving your cost .
|Moment Bore Temperature||-30~280||℃|
|Metal Oxide Compound||25||%|
High thermal Demand module
Cooling device to the end plate or between the Frame
High speed and large storage Drice
Automotive Engine Control
Hard disk drive
Power conversion apparatus
High power PCB LED
Notebook and desktop computers
Network communications equipment
Household appliances ,electronic components ,electrical etc.
1. Clean the CPU and heat sink surface, wipe the surface lightly with a cotton ball or cotton seab dampened with our thermal cleanser.
2. Place a tiny drop of thermal grease to the center of the cooler base, smear it evenly with scraper, best thickness is 0.13~0.15mm.
3. Attach the heat sink to the processor and avoid removing the heat sink after installing it.
