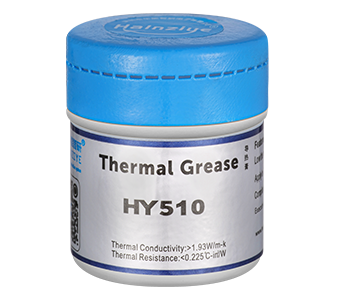

HY510 Grey Thermal Grease 10g in the Can
>

HY510 Grey Thermal Grease 10g in the Can

HY510 thermal grease, better cooling performance with high t...

  • Model:HY510-CN10
  • Brand:HALNZIYE
  • Colour:Grey
  • Thermal conductivity:1.93 W/m-k
  • Package:10g in the small can
  • Application:CPU, PCB LED Lighting, Power Supplier etc.
  • Thermal Impedance:0.225 °C-in2/W
  • Concentration:380 ± 10 1/10mm
  • High temperature resistance:-30 ~ 280 °C
  • Operation temperature:-20 ~ 230 °C
Order Hotline:+86-0755-28772795

product details

HY510 Grey Themral Grease



Product Description



HY510 Grey Thermal Grease , Normal Cheap Model , Thermal grease passed SGS , ROHS, SVHC Certificates, differen packing for your different demands.



Thermal conductivity : 1.93w/m-k

Good Electric Insulating ,Breakdown 5kv voltage

Low Thermal Impedance ,keep grease condition with long time

With a wide range working temperature ,keep stable performance at temperature

-30 ℃ ~280 ℃

High performance , saving your cost .



Specifications:



ModelHY510Unit
ColorGreyNo
Thermal Conductivity>1.93W/m-k
Thermal Impedance<0.225℃-in²/W
Specific Gravity>2.4g/cm³
Thixotropic Index380±101/10mm
Moment Bore Temperature-30~280

Operation

Temperature

-20~230



Ingredients



Silicone Compounds50%
Carbon Compounds30%
Metal Oxide Compound20%



Product Applications



High thermal Demand module

Cooling device to the end plate or between the Frame

High speed and large storage Drive

Automotive Engine Control

Hard disk drive

Power conversion apparatus

High power PCB LED Lighting

Notebook and desktop computers

Network communications equipment

Household appliances ,electronic components ,electrical etc.


Application Method



1. Clean the CPU and heat sink surface, wipe the surface lightly with a cotton ball or cotton seab dampened with our thermal cleanser.

2. Place a tiny drop of thermal grease to the center of the cooler base, smear it evenly with scraper, best thickness is 0.13~0.15mm.

3. Attach the heat sink to the processor and avoid removing the heat sink after installing it.
4. Finished


Product Storage



Room temperature
